The specification for all the non-passenger coaching stock kits is as follows:
Photo-etched brass body and underframe;
Etched and investment cast brass details and fittings;
Etched compensated bogies with full brake gear and cast details or compensated
6 wheel underframes as appropriate;
Extruded aluminium roof (CC9 and CC26) or photo-etched brass roof (CC17-19);
All wire, glazing material etc as appropriate;
Sprung buffers and superbly turned and milled "T" door handles.
Download
kit instructions Download
prototype notes

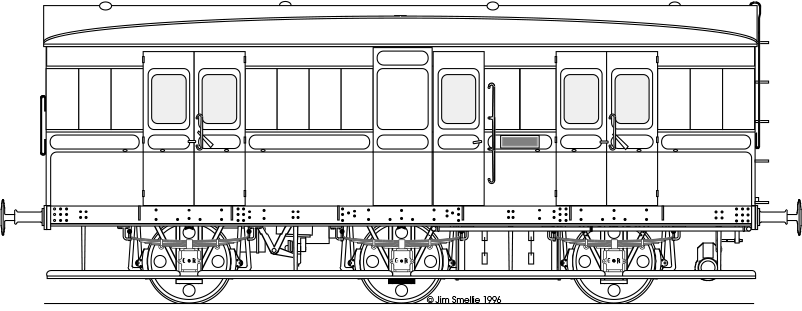

CC09 30' 6-wheel Passenger Brake Van, Diagram 18, Lot H355.
£25.00. Packed Weight 400g
Said to be chilly and rough riding because of the concrete floor, these vans were built in 1921 and dual fitted from new.
Download kit instructions and prototype notes

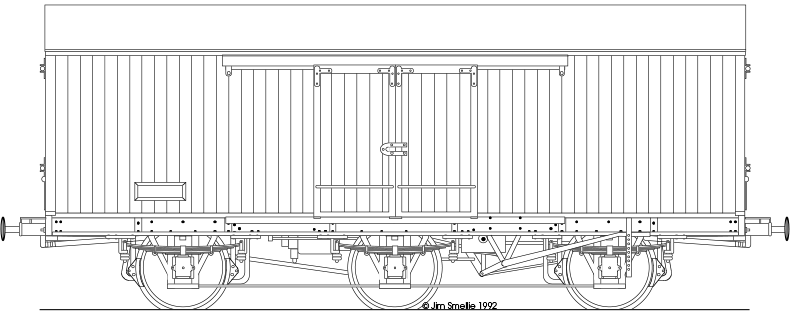

CC17 30' 6 wheel Covered Carriage Truck, Diagram 87A, Lots H300, H322 & H350
£25.00. Packed Weight 400g
Built 1912 to 1920. Also built to goods Diagram 101, Lots G324 & G346 in 1913 & 14 - these were classed as Motor Car Vans by the L.M.S. The last survivor was withdrawn in 1960.
Download kit instructions and prototype notes

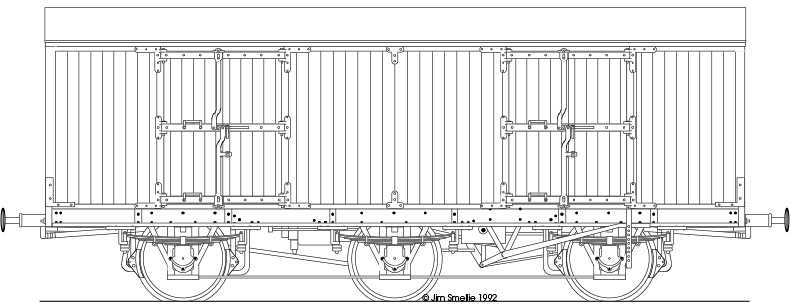

CC18 30' 6 wheel Fish Van Lot G351
£25.00. Packed Weight 400g
Built in 1914 these were officially goods stock but they were built to full passenger stock standards.
Download kit instructions and prototype notes

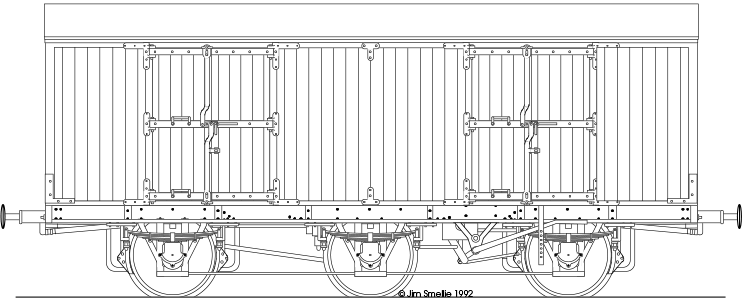

CC19 28' 6 wheel Meat Van D89
£22.00. Packed Weight 400g
Built 1912 the last survivor was withdrawn in 1951.
Download kit instructions and prototype notes

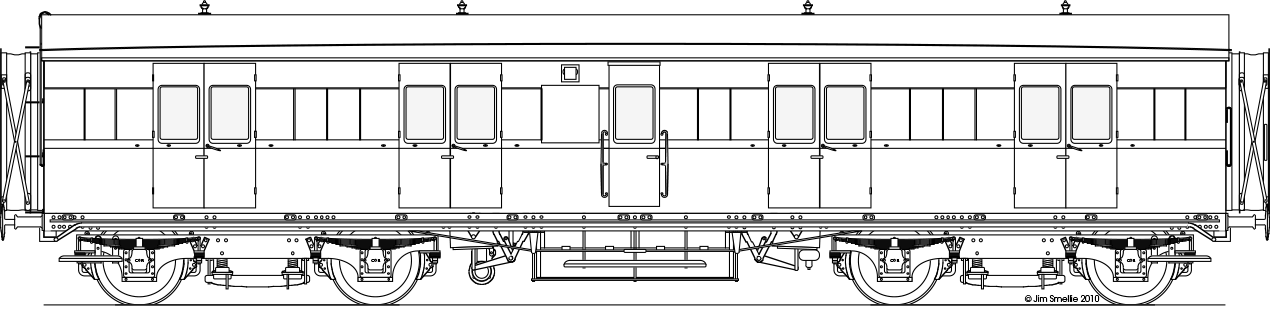

CC26 D98A, H321 Corridor full Brake
£40.00. Packed Weight 500g
This lot of 6 vans was built in 1914 with an underframe and body style which was very similar to contemporary passenger coaches (see CC21-24 for example). The last was withdrawn at the end of 1958.

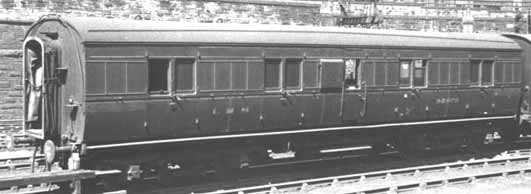

Diagram 98A Full Brake carrying its 2nd LMS number of 32875
(1st LMS no 6491 CR no 242)
