57' 8 wheel corridor stock built 1921-23.
These coaches represent the final era of Caledonian coach design. With a
full ellipical roof and, in the later examples, an angle-trussed underframe
they were in many respects similar to contemporary coaches built by the MR
and LNWR with whom they were soon to merge (with others) to form the London
Midland and Scottish Railway. Built by outside contractors none of this stock
was fitted with vacuum brake when built and so were confined to being hauled
by Westinghouse fitted C.R. locomotives until about 1933 when all were fitted
with vacuum equipment. After this they spread to all parts of the L.M.S. system
in Scotland and were not unknown south of the border.
Examples of all types lasted well into B.R. days but sadly by then the bodywork
had often been marred by repairs using tongue and groove boarding. On a more
happy note an example of each of Diagrams 124 and 111A (CC3 & 8) survive,
preserved by the S.R.P.S. at Bo'ness, Scotland.
Download Instructions for CC01-08
Download Numbering Information for CC01-08

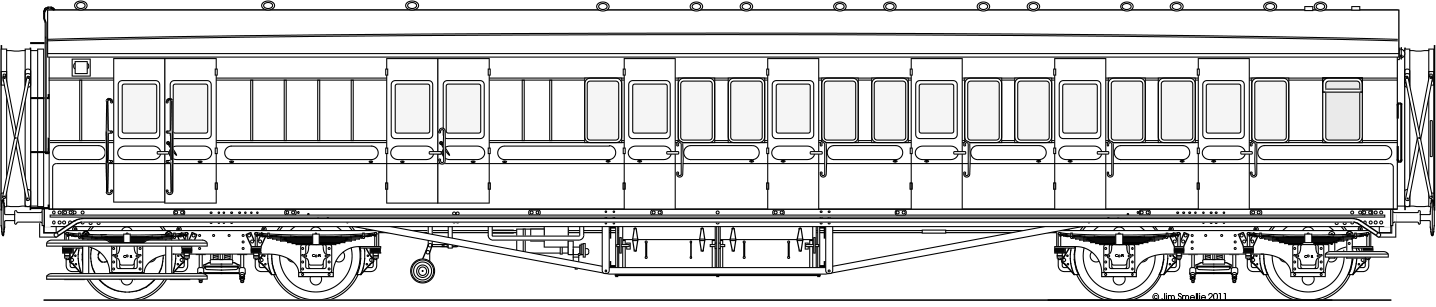

CC01 Corridor brake 3rd Diagram 122A.
£40.00. Packed Weight 600g
Built 1923 by R.Y. Pickering, Wishaw. Angle truss underframe.
Download Instructions for CC01-08
Download Numbering Information for CC01-08

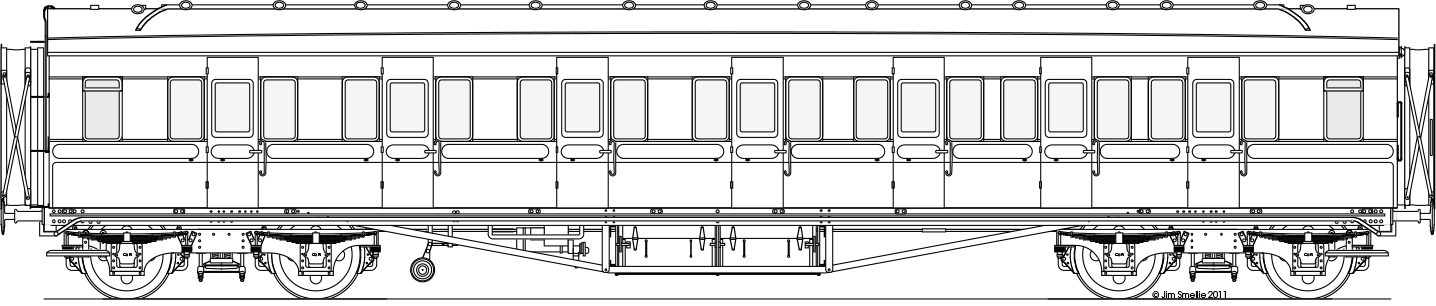

CC02 Corridor composite Diagram 112B.
£40.00. Packed Weight 600g
Built 1923 by R.Y. Pickering, Wishaw. Angle truss underframe.
Download Instructions for CC01-08
Download Numbering Information for CC01-08

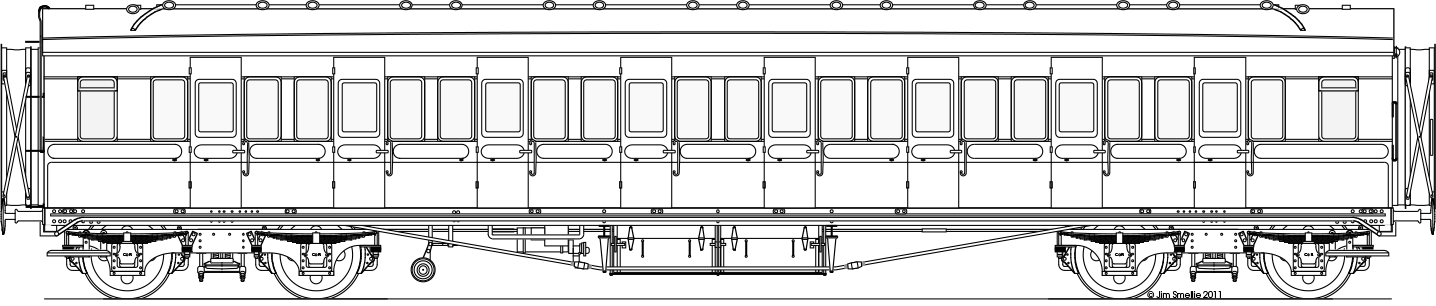

CC03 Corridor 3rd Diagram 124.
£40.00. Packed Weight 600g
Built 1921 by the Metropolitan C & W Co., Birmingham. Round-rod and queenpost underframe. (Corridor side shown in drawing)

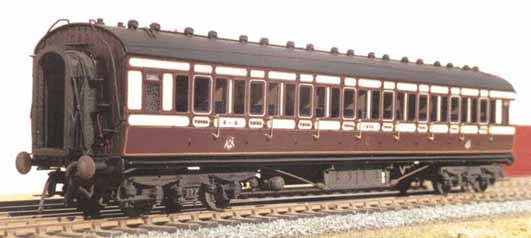

Compartment side

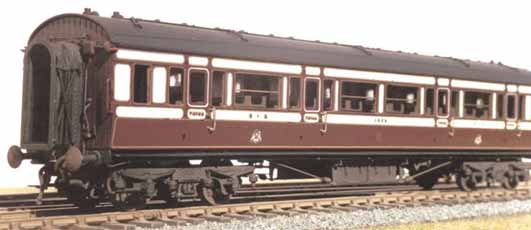

Corridor side Model built by ROCAR Phone 01697 470284 (Photos © ROCAR)
Download Instructions for CC01-08
Download Numbering Information for CC01-08

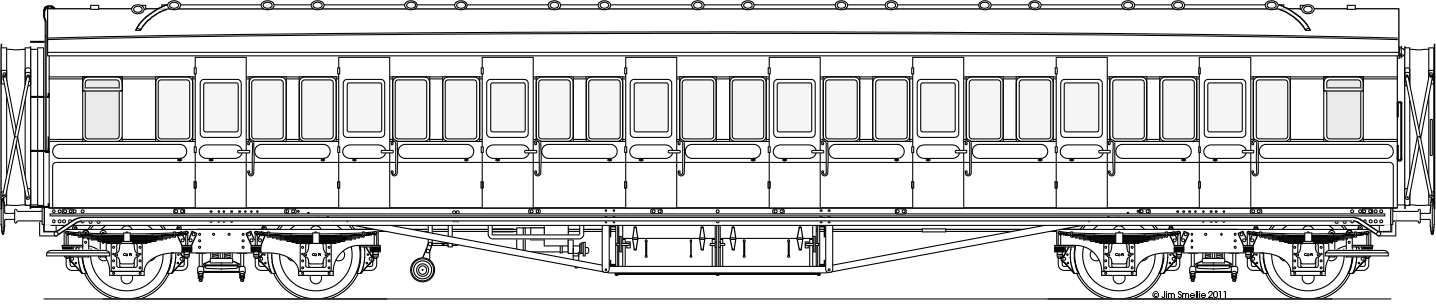

CC03a Corridor 3rd Diagram 124.
£40.00. Packed Weight 600g
As CC03 but built 1922 by R.Y. Pickering, Wishaw. Angle truss underframe. (Compartment side shown in drawing.)
Download Instructions for CC01-08
Download Numbering Information for CC01-08

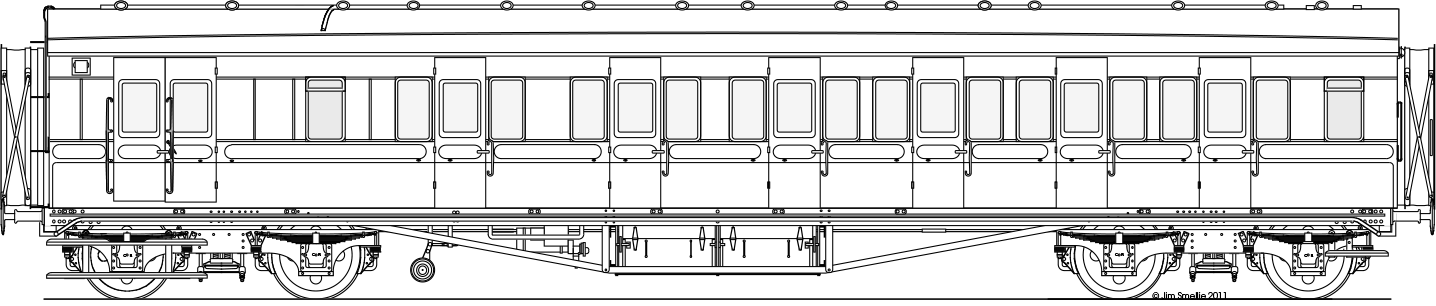

CC08 Corridor brake composite Diagram 111A.
£40.00. Packed Weight 600g
Built 1923 by R.Y. Pickering, Wishaw. Angle truss underframe.

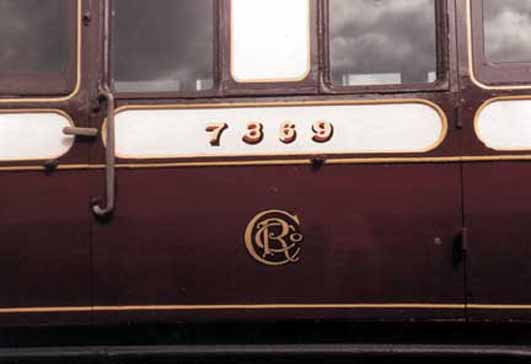

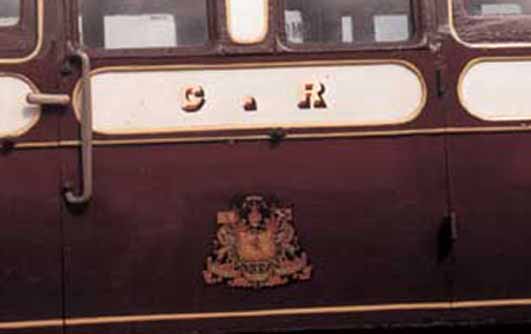

A couple of detail shots taken of the example of D111A preserved by the Scottish
Railway Preservation Society at Bo'ness, West Lothian. Note that these shots
date back to c1986 and were taken at an open day at Haymarket Shed, Edinburgh when
(CR)464 was running with its second LMS number despite the livery - this has
now been corrected!
